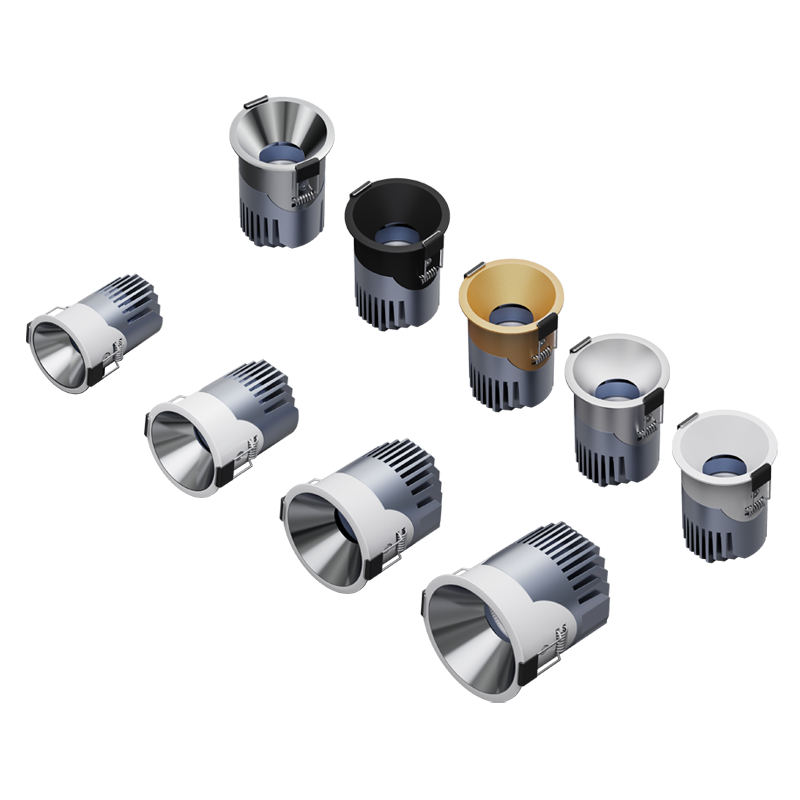

A compact magnetic spotlight for hospitality and retail environments where discreet, flexible accent lighting is required.
Product highlights
A practical lighting platform for engineers, contractors, importers, and professional distribution partners.

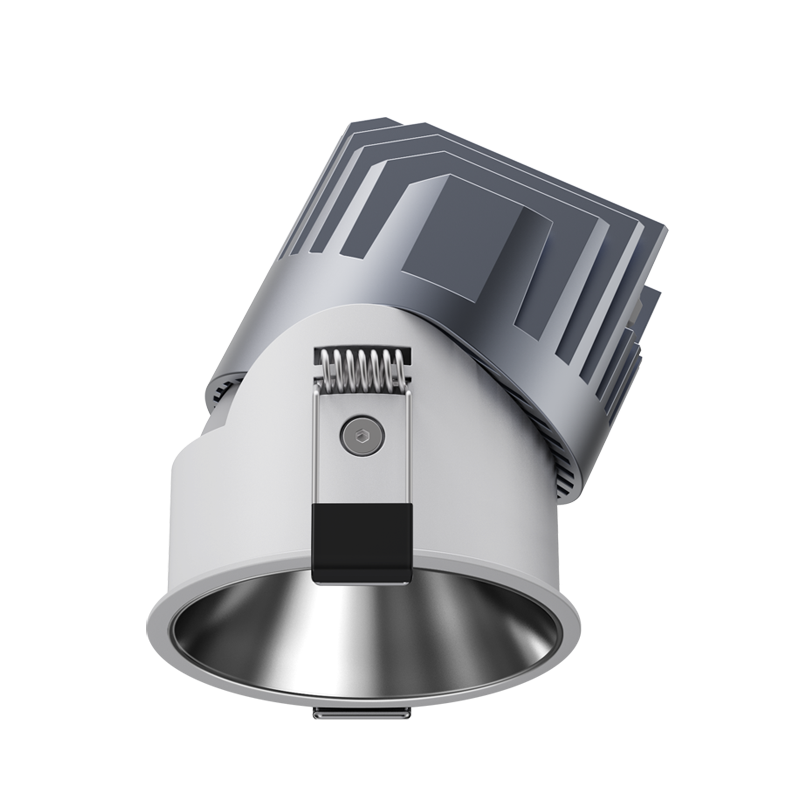

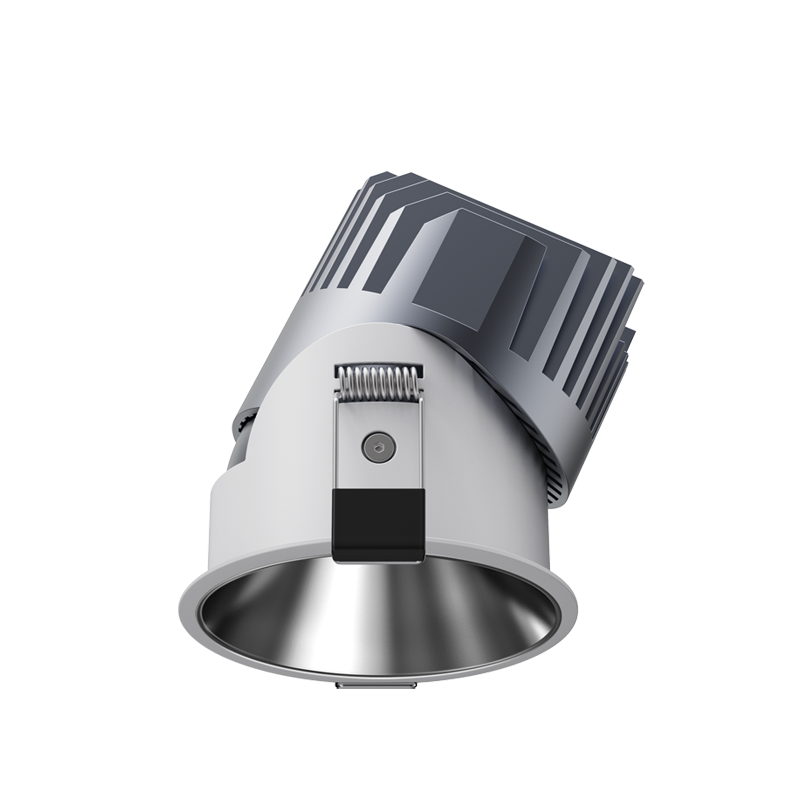

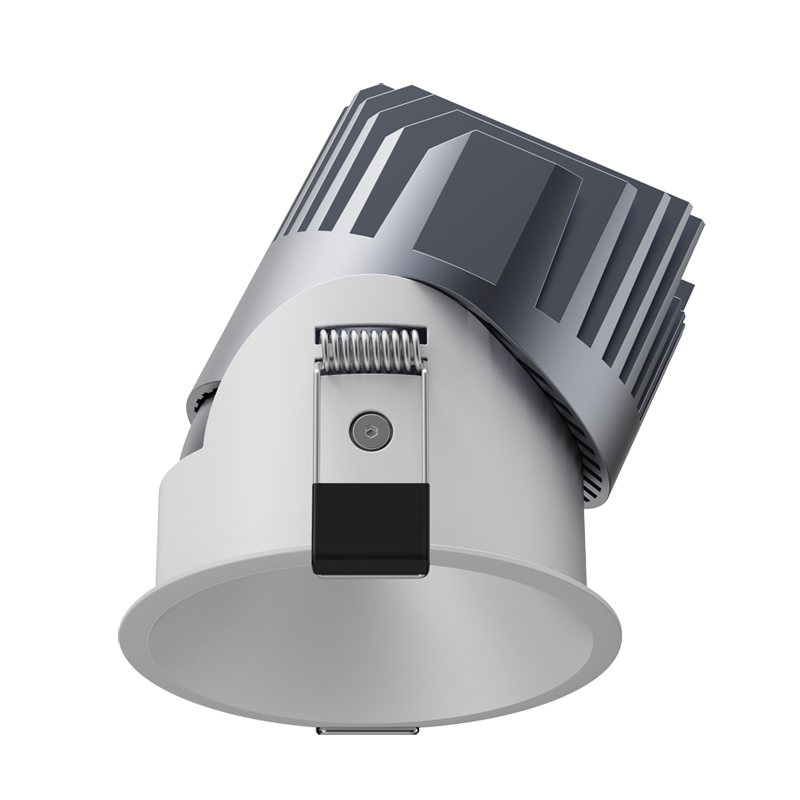

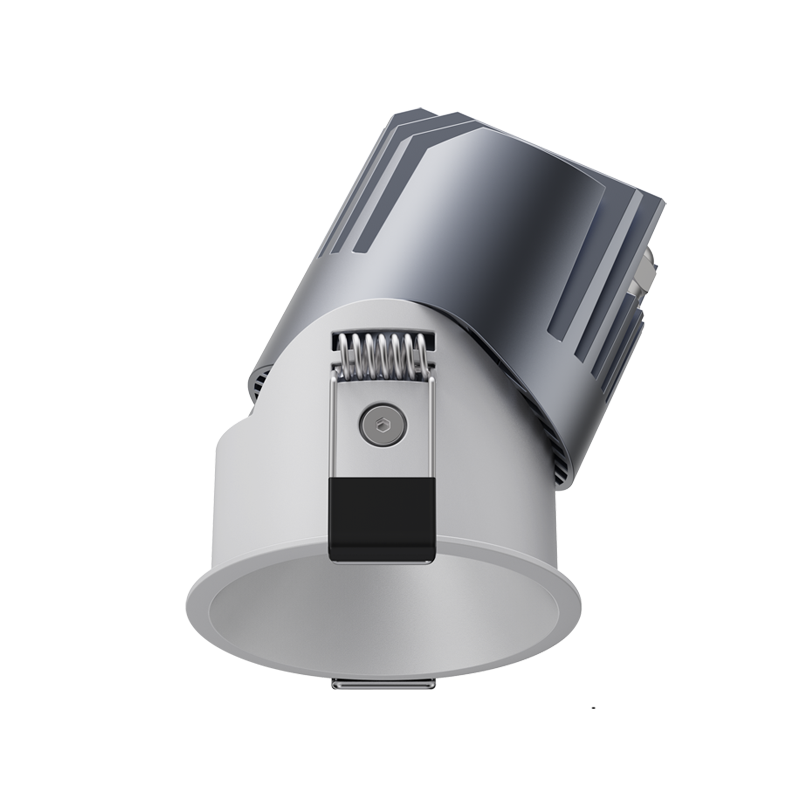

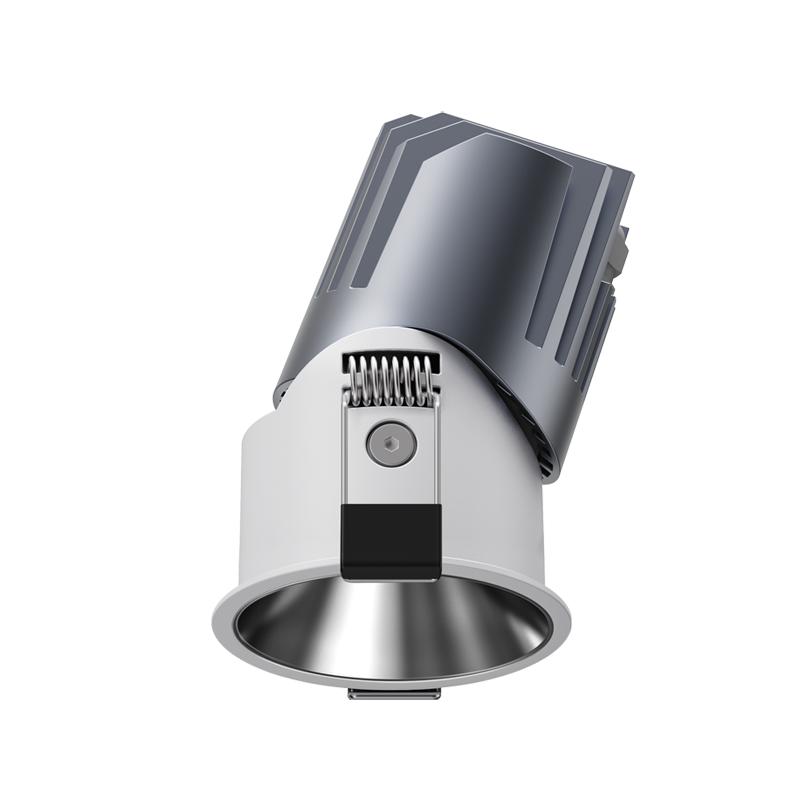

The adjustable spotlight head allows the light direction to be changed easily, making it ideal for highlighting specific areas, objects and architectural features. It provides greater flexibility than fixed recessed downlights.
With an IP65-rated design, the spotlight provides reliable protection against dust and water jets. It is suitable for bathrooms, shower areas, wet environments and covered outdoor applications.
The STN Series offers multiple beam angles, including 15°, 24°, 38° and 55°. This allows users to select a suitable light distribution for accent lighting, general illumination and focused applications.
The compact recessed structure integrates neatly into the ceiling while maintaining a clean and modern appearance. Different sizes and cutout options are available for various installation requirements.
Available from 6W to 30W, the STN Series provides different power levels, diameters and cutout sizes to match different ceiling designs and lighting requirements. This makes it suitable for both small-scale installations and commercial lighting projects.
Technical information
Compare available wattages and model dimensions at a glance. Final specifications are confirmed with the quotation.
| Model Number | Wattage | Luminous Flux | Color Temperature | CRI | Beam Angle | Product Dimensions | Cutout Size |
|---|---|---|---|---|---|---|---|
| JST-STN-6W | 6W | 600 lm | 2700K / 3000K / 4000K / 6500K | CRI 90+ | 15° / 24° / 36° / 55° | Ø52 × H72 mm | Ø45 mm |
| JST-STN-8W | 8W | 800 lm | 2700K / 3000K / 4000K / 6500K | CRI 90+ | 15° / 24° / 36° / 55° | Ø62 × H77 mm | Ø55 mm |
| JST-STN-10W | 10W | 1000 lm | 2700K / 3000K / 4000K / 6500K | CRI 90+ | 15° / 24° / 36° / 55° | Ø73 × H80 mm | Ø65 mm |
| JST-STN-12W | 12W | 1200 lm | 2700K / 3000K / 4000K / 6500K | CRI 90+ | 15° / 24° / 36° / 55° | Ø84 × H85 mm | Ø75 mm |
| JST-STN-20W | 20W | 2000 lm | 2700K / 3000K / 4000K / 6500K | CRI 90+ | 15° / 24° / 36° / 55° | Ø103 × H110 mm | Ø95 mm |
| JST-STN-30W | 30W | 3000 lm | 2700K / 3000K / 4000K / 6500K | CRI 90+ | 15° / 24° / 36° / 55° | Ø130 × H135 mm | Ø125 mm |
Application scenarios
See how this lighting platform can be specified for different spaces. Choose images that show the actual product in a relevant application.

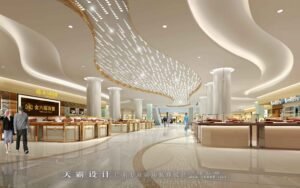

Discuss your applicationConsistent light for guest rooms, corridors, reception areas, restaurants, and public spaces.
Controlled beam distribution and color quality for merchandise presentation.

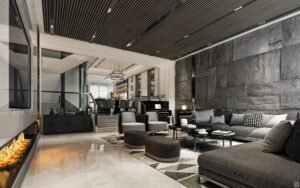

A dependable specification option for offices, meeting rooms, lobbies, and mixed-use developments.
Suitable for premium residential, education, healthcare, and indoor applications after validation.
Certification and quality control
Certificate availability depends on the final product configuration and destination market.
IES files, LM-80 documentation, technical files, product labels, and destination-market requirements can be reviewed during quotation.
Ask our team for the current certificate set, technical files, and product-specific compliance documents.
Product details
| Series | JST-STN |
|---|---|
| Product Type | IP65 Adjustable LED Spot Light |
| Power | 6W / 8W / 10W / 12W / 20W / 30W |
| Beam Angle | 15° / 24° / 38° / 55° |
| CRI | >80 / >90 |
| CCT | 2700K–5000K |
| IP Rating | IP65 |
| LED | COB LED |
| Input Voltage | AC220–240V |
| Finish | White / Black / Customized |
