IP65 Waterproof Design
Suitable for humid and moisture-prone environments.
Private Mold / OEM / ODM

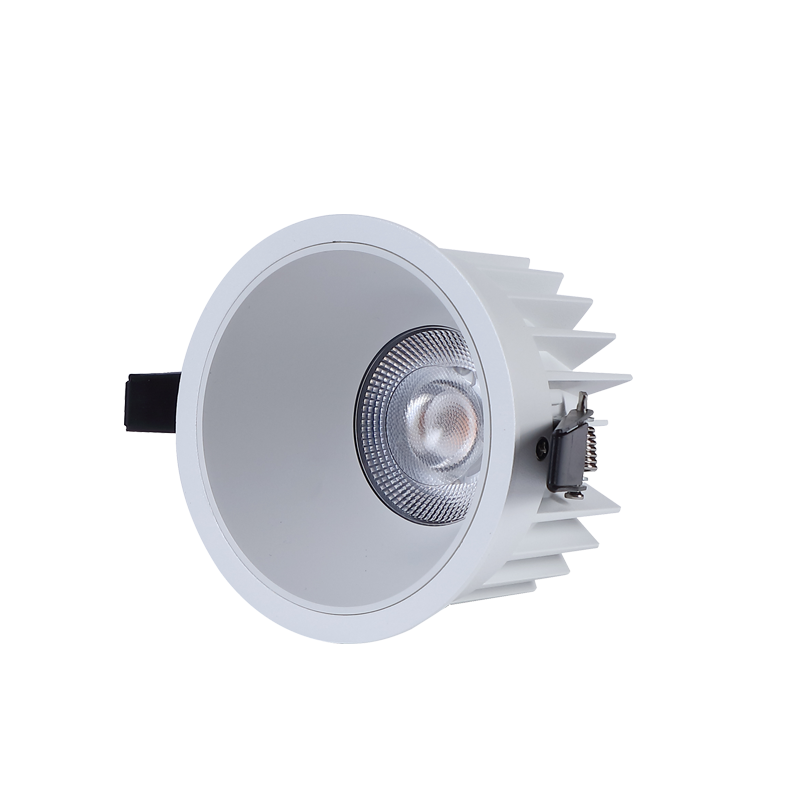

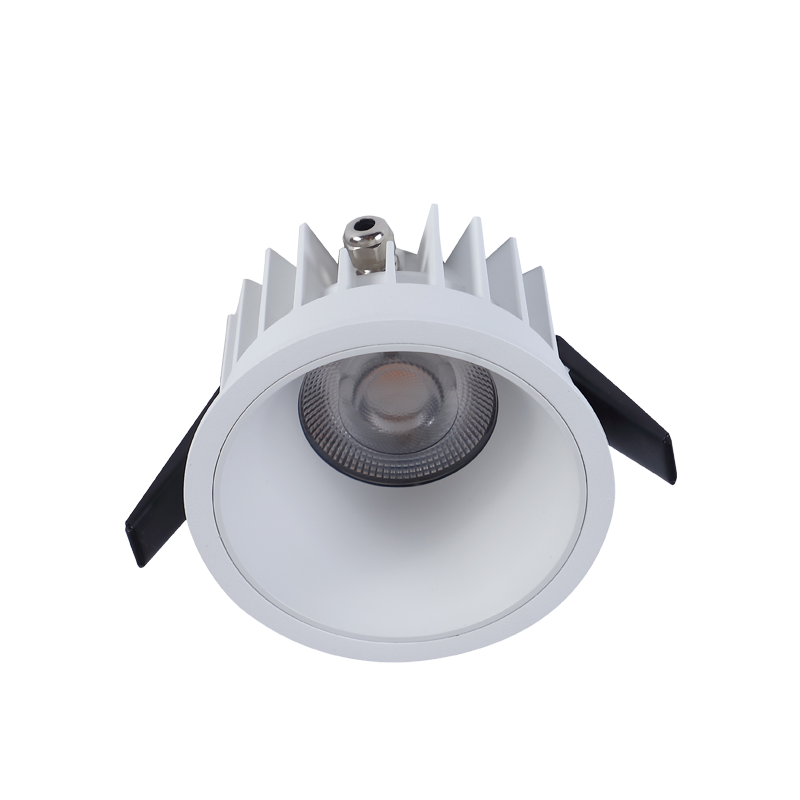

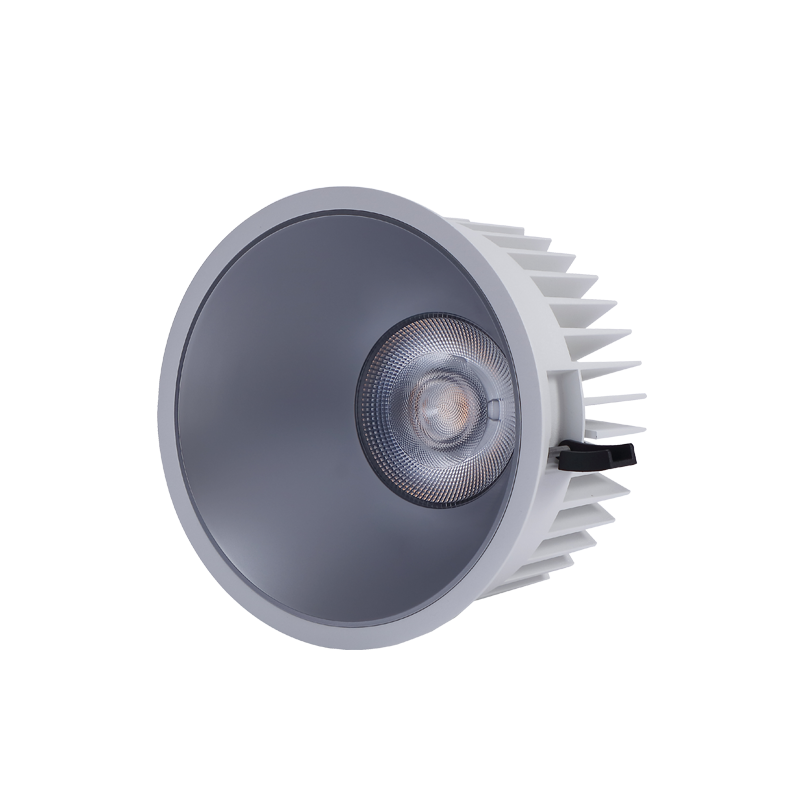

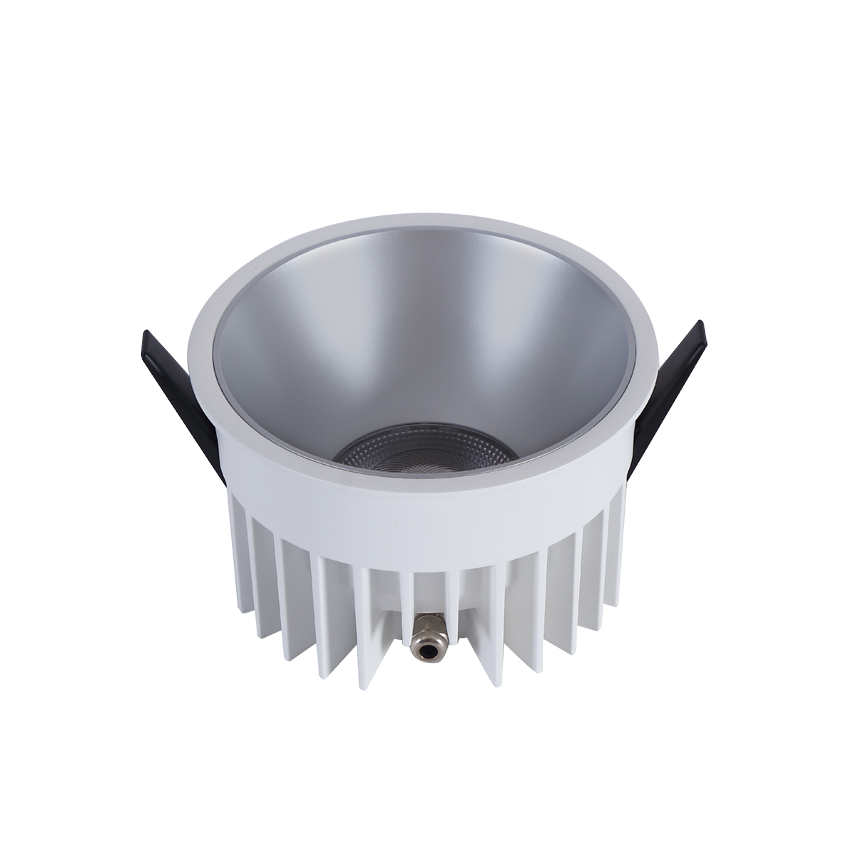

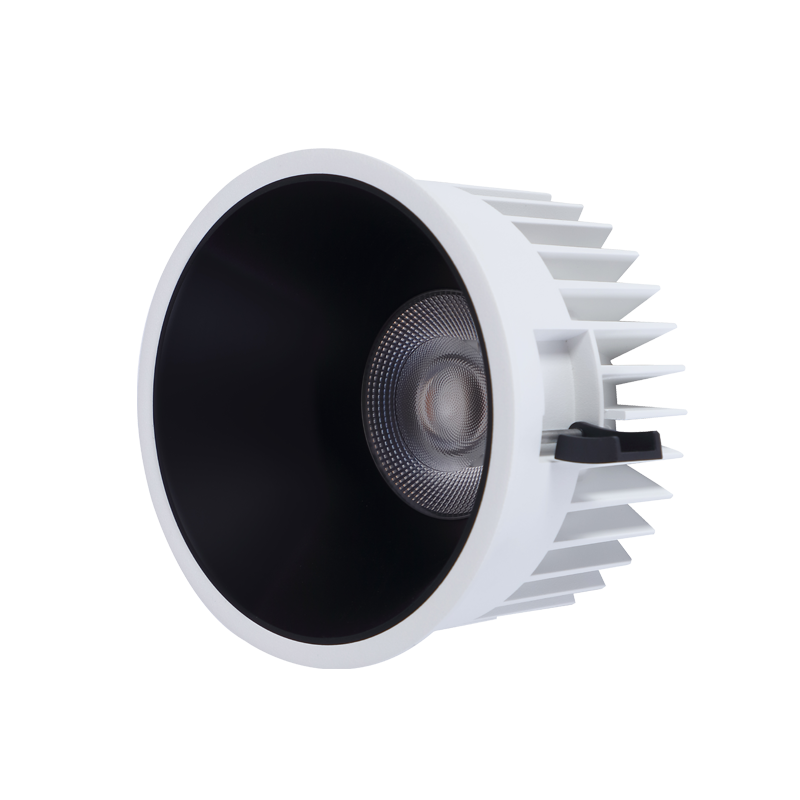

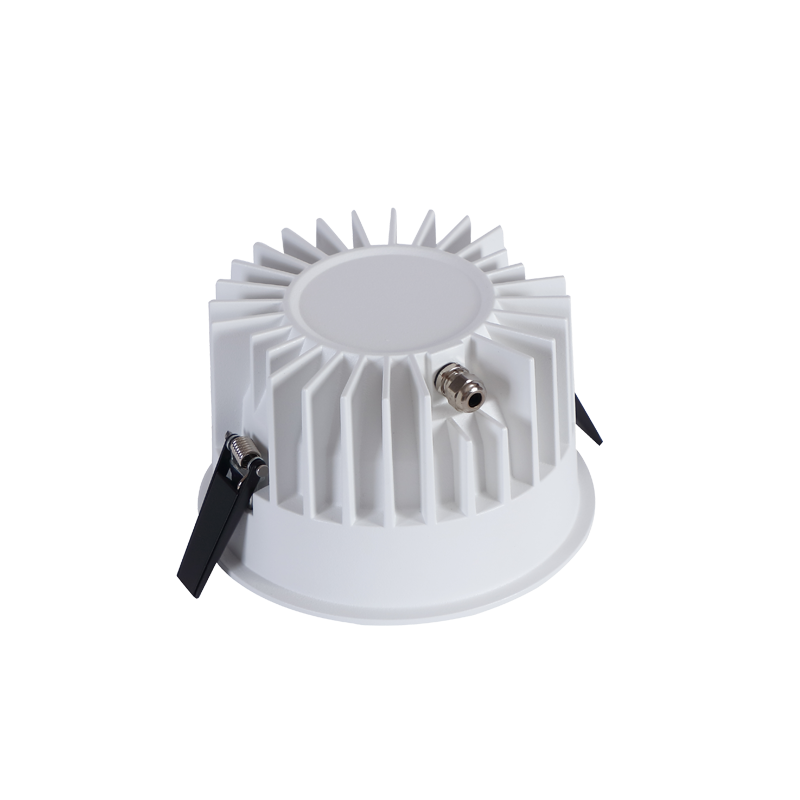

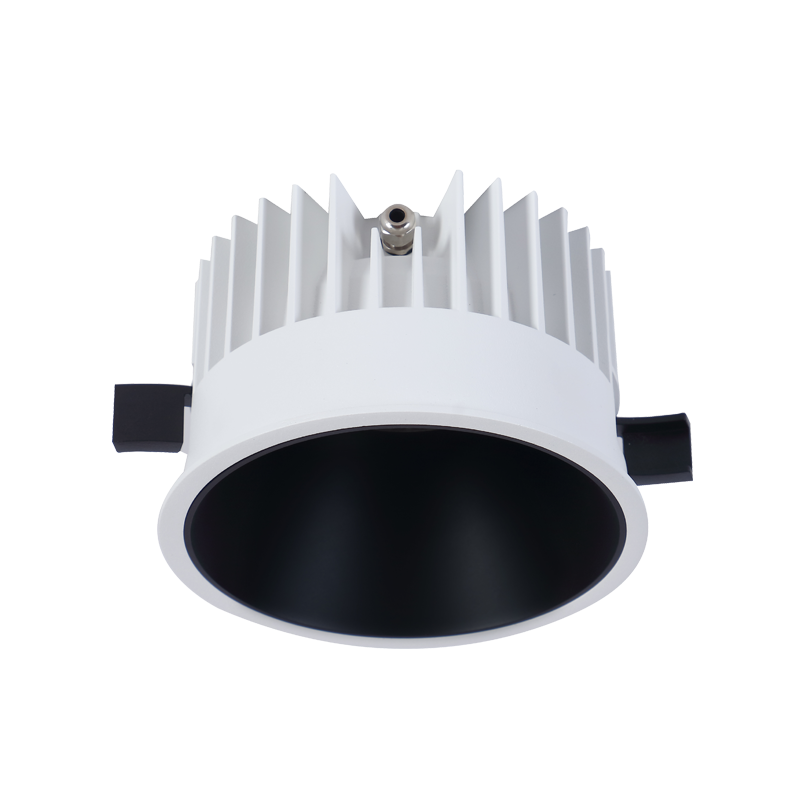

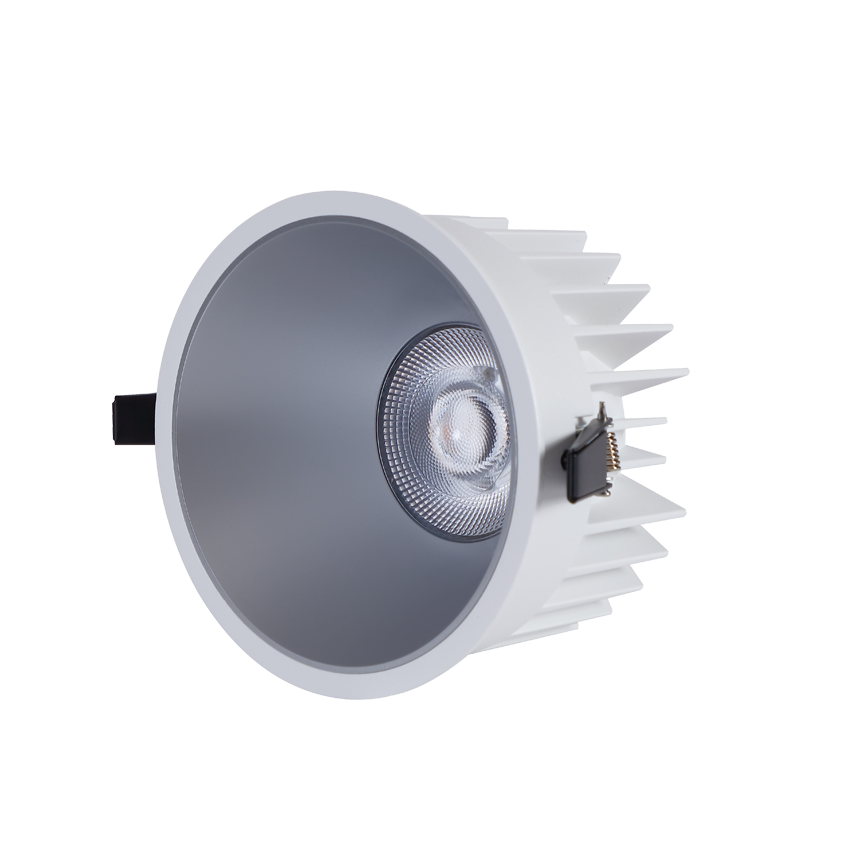

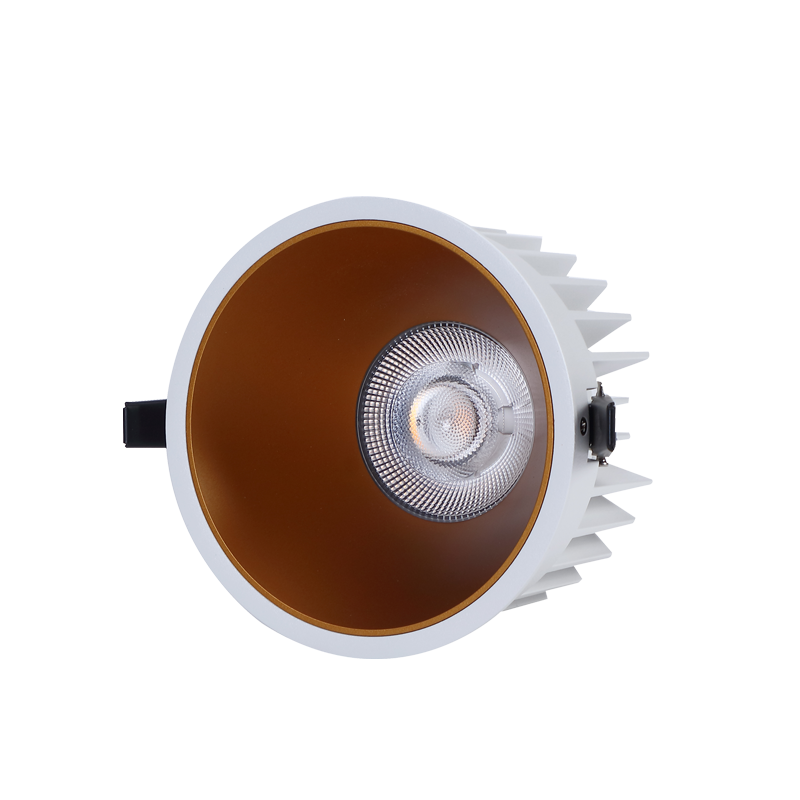

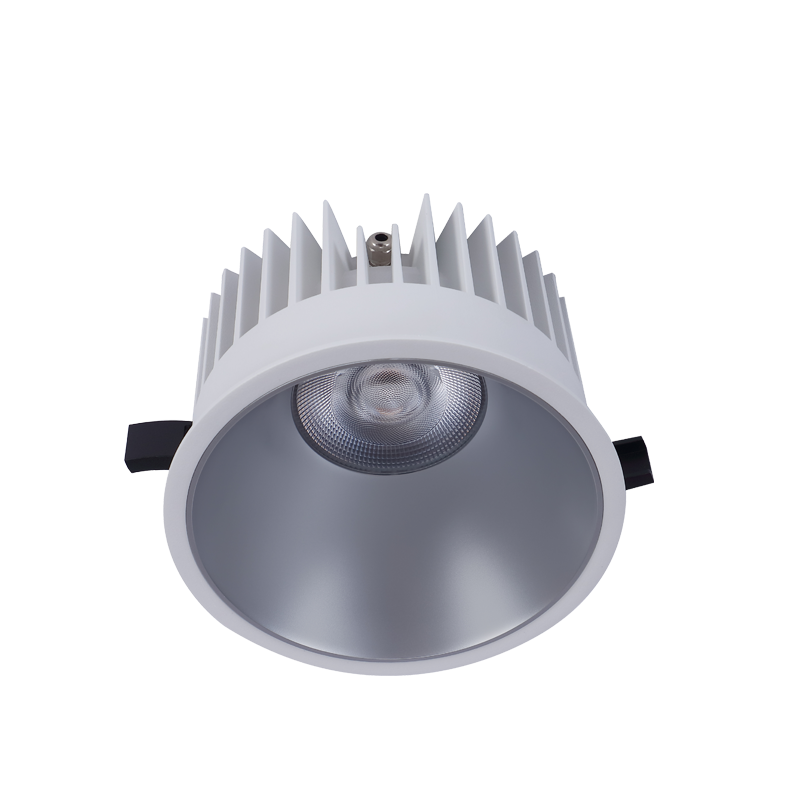

IP65 Waterproof LED Downlight DTI Series | Round | JARSTAR
A recessed grille downlight developed for offices, hospitality corridors and retail areas requiring directional light with a discreet architectural appearance.
1-2 pcs sampling
No hard MOQ
EXW Shenzhen
Downlights
Click a thumbnail to change view
Product highlights
Built for demanding commercial lighting projects.
A practical lighting platform for engineers, contractors, importers, and professional distribution partners.
Square & Round Options
Modern designs for different architectural styles.
Multiple Beam Angles
15°, 35°, 38° and 60° for flexible lighting applications.
Low Glare Lighting
Designed for comfortable and focused illumination.

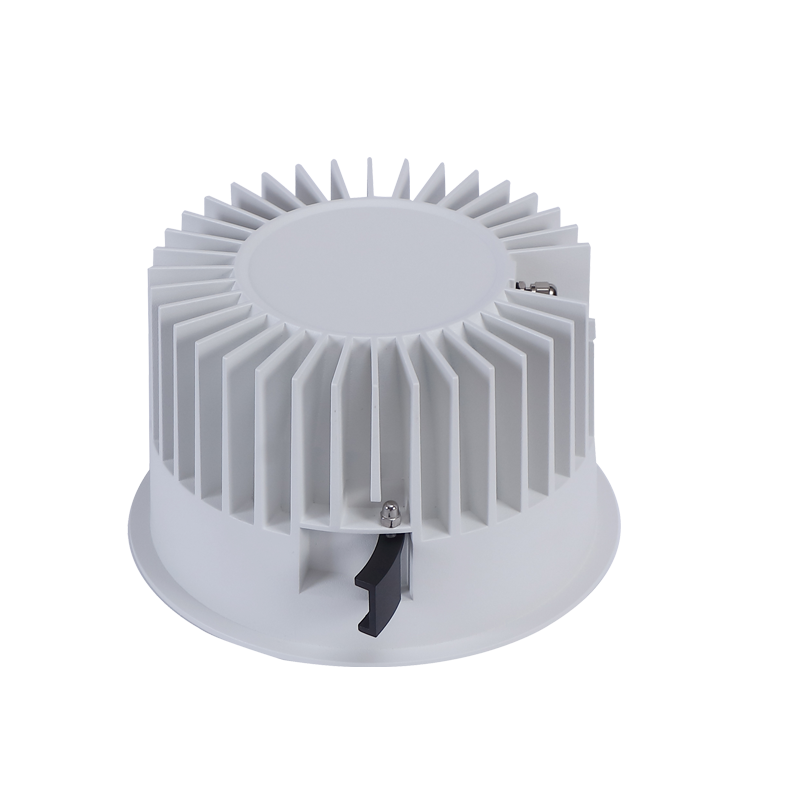

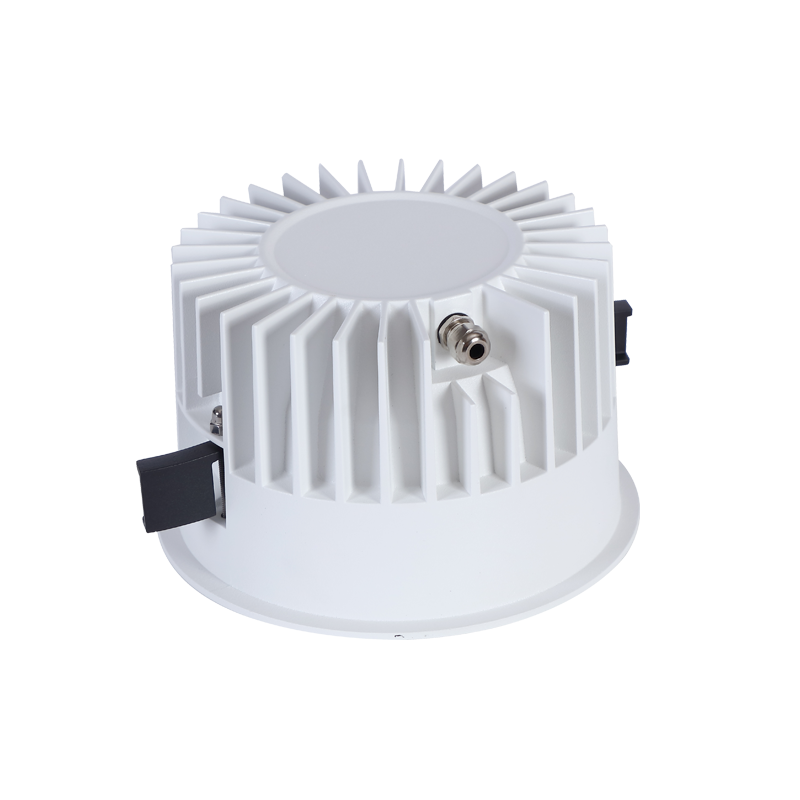

High-Quality Aluminum Housing
Durable, corrosion-resistant and excellent heat dissipation.
Technical information
Technical specifications
Compare available wattages and model dimensions at a glance. Final specifications are confirmed with the quotation.
| Model Number | Wattage | Luminous Flux | Color Temperature | CRI | Beam Angle | Product Dimensions | Cutout Size |
|---|---|---|---|---|---|---|---|
| JST-DTI-15W-R | 15W | 1500 lm | 3000K / 4000K / 6500K | CRI 90+ | 15° / 24°/ 38°/ 60° | Ø86 × H54 mm | Ø75 mm |
| JST-DTI-20W-R | 20W | 2000 lm | 3000K / 4000K / 6500K | CRI 90+ | 15° / 24°/ 38°/ 60° | Ø100 × H64mm | Ø90 mm |
| JST-DTI-30W-R | 30W | 3000 lm | 3000K / 4000K / 6500K | CRI 90+ | 15° / 24°/ 38°/ 60° | Ø136 × H83mm | Ø125 mm |
| JST-DTI-40W-R | 40W | 4000 lm | 3000K / 4000K / 6500K | CRI 90+ | 15° / 24°/ 38°/ 60° | Ø158 × H96mm | Ø145 mm |
| JST-DTI-50W-R | 50W | 5000 lm | 3000K / 4000K / 6500K | CRI 90+ | 15° / 24°/ 38°/ 60° | Ø180 × H109 mm | Ø165 mm |
Application scenarios
Designed around real commercial spaces.
See how this lighting platform can be specified for different spaces. Choose images that show the actual product in a relevant application.
Discuss your applicationHotels and hospitality
Consistent light for guest rooms, corridors, reception areas, restaurants, and public spaces.

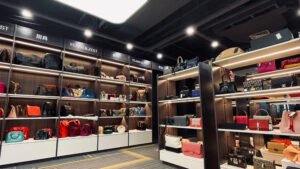

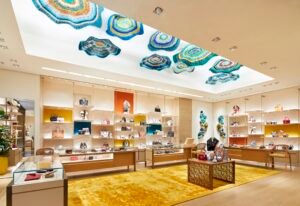

Retail and showrooms
Controlled beam distribution and color quality for merchandise presentation.
Offices and interiors
A dependable specification option for offices, meeting rooms, lobbies, and mixed-use developments.
Residential and public projects
Suitable for premium residential, education, healthcare, and indoor applications after validation.
Certification and quality control
Documentation that supports project approval.
Certificate availability depends on the final product configuration and destination market.
Available compliance direction
CE
RoHS
SAA
TUV
IES files, LM-80 documentation, technical files, product labels, and destination-market requirements can be reviewed during quotation.
Certificate library
Ask our team for the current certificate set, technical files, and product-specific compliance documents.
Product details
More about this product
IP65 Waterproof Square LED Downlight
The DTI-S Series is a high-performance IP65 LED downlight designed for indoor and outdoor applications. With a modern recessed design, aluminum housing and reliable waterproof construction, it provides stable and efficient lighting in commercial, residential and humid environments. Available in both square and round shapes, the DTI-S Series offers 15°, 35°, 38° and 60° beam angles for different lighting requirements. The IP65 waterproof structure helps protect the fixture from dust and moisture, making it suitable for bathrooms, corridors, covered outdoor areas, hotels, offices, retail stores and other commercial spaces.Key Features
- IP65 Waterproof Design – Suitable for humid and moisture-prone environments.
- Square & Round Options – Modern designs for different architectural styles.
- Multiple Beam Angles – 15°, 35°, 38° and 60° for flexible lighting applications.
- Low Glare Lighting – Designed for comfortable and focused illumination.
- High-Quality Aluminum Housing – Durable, corrosion-resistant and excellent heat dissipation.
- High Color Rendering – CRI >90 option for natural and vivid lighting.
- Multiple Power Options – Available from 10W to 50W according to the application.
- Custom Finishes Available – White, black and customized colors.
Applications
The IP65 waterproof LED downlight is suitable for:- Bathrooms and wet areas
- Hotels and restaurants
- Offices and commercial spaces
- Retail stores and showrooms
- Corridors and entrances
- Residential projects
- Covered outdoor areas
- Building eaves and canopies
- Other indoor and outdoor lighting projects
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | IP65 LED Downlight |
| Model | JST-DTI-R |
| Power | 15W–50W |
| LED Chip | Citizen / Cree |
| CRI | >80 / >90 |
| CCT | 2700K–6500K |
| Beam Angle | 15° / 24° / 38° / 60° |
| IP Rating | IP65 |
| Shape | Square / Round |
| Housing | Aluminum |
| Finish | White / Black / Customized |
| Input Voltage | AC220–240V |
| Application | Indoor & Covered Outdoor |
Why Choose JARSTAR IP65 LED Downlights?
JARSTAR provides professional LED lighting solutions for commercial and architectural projects. The DTI-S Series combines waterproof protection, flexible beam angles, durable aluminum construction and modern recessed design to meet different project lighting requirements. Contact JARSTAR for product specifications, samples and customized LED lighting solutions.Start a project
Get a project-focused quotation.
Share your target parameters, quantity, application, and destination market. Our engineering team will recommend the next practical step.
- 01Confirm parameters, quantity, application, and delivery target.
- 02Review quotation, sample plan, technical files, and trade terms.
- 03Validate samples before batch production and shipment.
