Surface-Mounted Design – No Track Rail Required
Designed for direct surface mounting, the XM LED Track Light eliminates the need for a traditional track rail, providing a clean, flexible, and space-saving lighting solution for indoor applications.
Private Mold / OEM / ODM

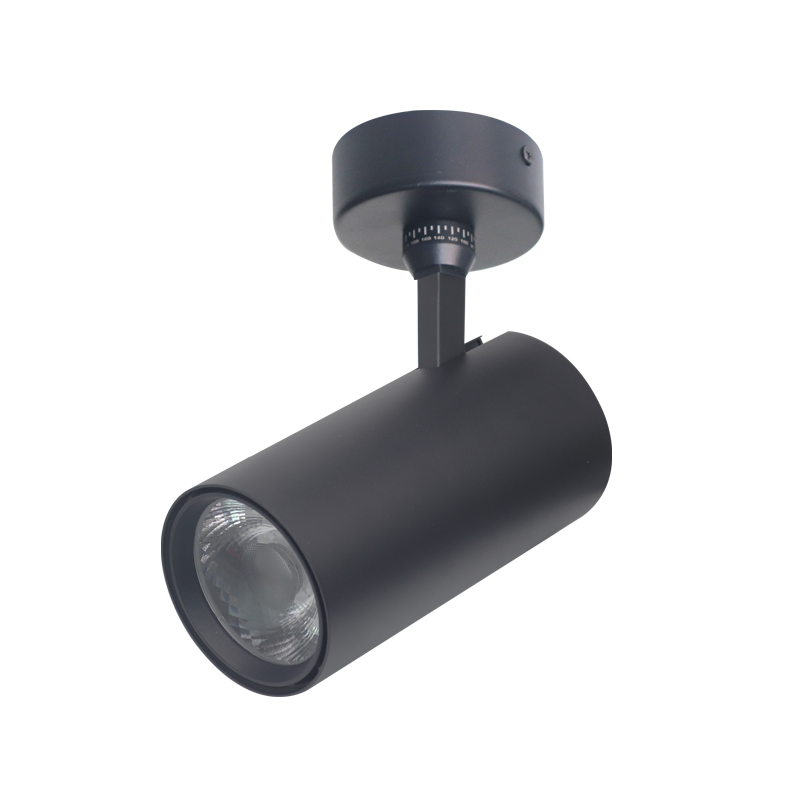

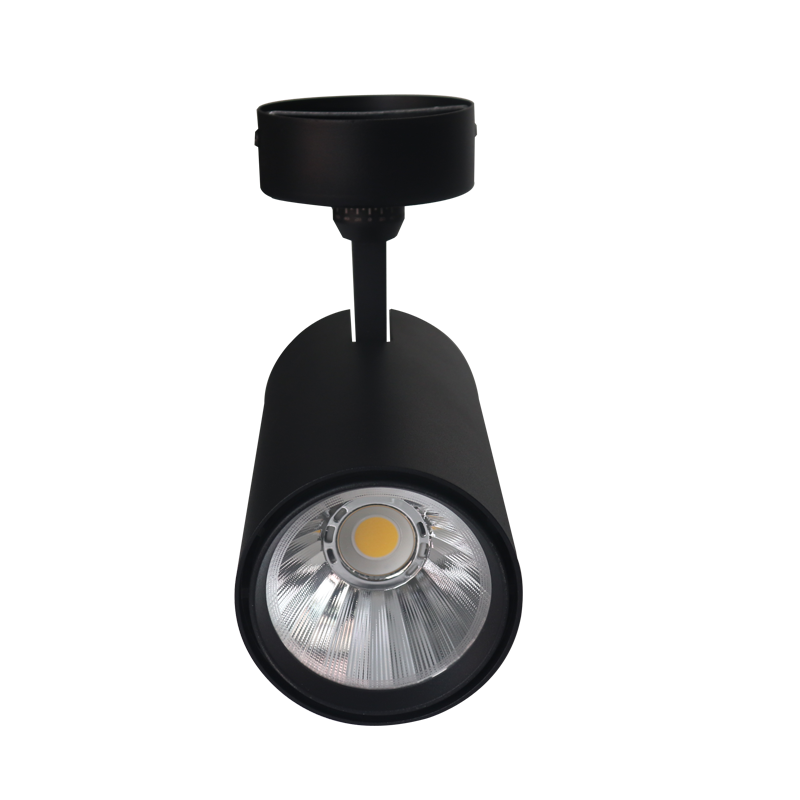

XM Surface Mounted LED Spotlight 15–35W | JARSTAR
JARSTAR XF-SM Surface Mounted LED Track Light features 360° horizontal and 90° vertical adjustment without a track rail. 15-35W, CRI 90/95, multiple beam angles and custom options.
1-2 pcs sampling
No hard MOQ
EXW Shenzhen
Track Lights
Click a thumbnail to change view
Product highlights
Built for demanding commercial lighting projects.
A practical lighting platform for engineers, contractors, importers, and professional distribution partners.

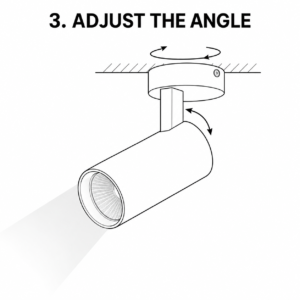

360° Horizontal & 90° Vertical Adjustment
The adjustable spotlight head offers 360° horizontal rotation and 90° vertical adjustment, allowing precise control of the lighting direction for retail stores, galleries, hotels, restaurants, and commercial spaces.
Multiple Beam Angles for Flexible Lighting
Available with 15°, 24°, 36°, 45°, and 60° beam angles, this surface mounted LED track light can deliver focused accent lighting or wider area illumination according to different project requirements.
High Color Rendering CRI 90/95
With CRI 90 and CRI 95 options, the fixture provides excellent color rendering and helps showcase products, artwork, displays, and interior details with natural and vivid colors.
15W–35W LED Power Options
Available in 15W, 20W, 25W, 30W, and 35W, the XM series offers multiple wattage options to meet different lighting levels and project requirements while maintaining an efficient LED lighting solution.
Compact & Modern Commercial Lighting Solution
With its compact surface-mounted structure and adjustable design, the XM combines modern aesthetics with practical functionality, making it suitable for retail lighting, hospitality lighting, gallery lighting, showroom lighting, and other indoor commercial applications.
Technical information
Technical specifications
Compare available wattages and model dimensions at a glance. Final specifications are confirmed with the quotation.
| Model Number | Wattage | Luminous Flux | Color Temperature | CRI | Beam Angle | Product Dimensions | Cutout Size |
|---|---|---|---|---|---|---|---|
| JST-XM-15W | 15W | 1500 lm | 3000K / 4000K / 6500K | CRI 90+ | 15°/ 24°/ 36°/ 45°/ 60° | Ø60 × L170 mm | -- |
| JST-XM-20W | 20W | 2000 lm | 3000K / 4000K / 6500K | CRI 90+ | 15°/ 24°/ 36°/ 45°/ 60° | Ø70 × L170 mm | -- |
| JST-XM-25W | 25W | 2500 lm | 3000K / 4000K / 6500K | CRI 90+ | 15°/ 24°/ 36°/ 45°/ 60° | Ø80 × L190 mm | -- |
| JST-XM-30W | 30W | 3000 lm | 3000K / 4000K / 6500K | CRI 90+ | 15°/ 24°/ 36°/ 45°/ 60° | Ø90 × L180 mm | -- |
| JST-XM-35W | 35W | 3500 lm | 3000K / 4000K / 6500K | CRI 90+ | 15°/ 24°/ 36°/ 45°/ 60° | Ø90 × L180 mm | -- |

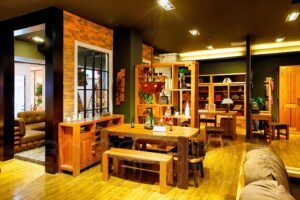

Application scenarios
Designed around real commercial spaces.
See how this lighting platform can be specified for different spaces. Choose images that show the actual product in a relevant application.
Discuss your applicationHotels and hospitality
Consistent light for guest rooms, corridors, reception areas, restaurants, and public spaces.

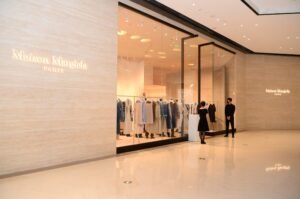

Retail and showrooms
Controlled beam distribution and color quality for merchandise presentation.
Offices and interiors
A dependable specification option for offices, meeting rooms, lobbies, and mixed-use developments.
Residential and public projects
Suitable for premium residential, education, healthcare, and indoor applications after validation.
Certification and quality control
Documentation that supports project approval.
Certificate availability depends on the final product configuration and destination market.
Available compliance direction
CE
RoHs
SAA
TUV
IES files, LM-80 documentation, technical files, product labels, and destination-market requirements can be reviewed during quotation.
Certificate library
RoHs
View file for RoHs
Factory quality
Controlled production from housing to shipment.

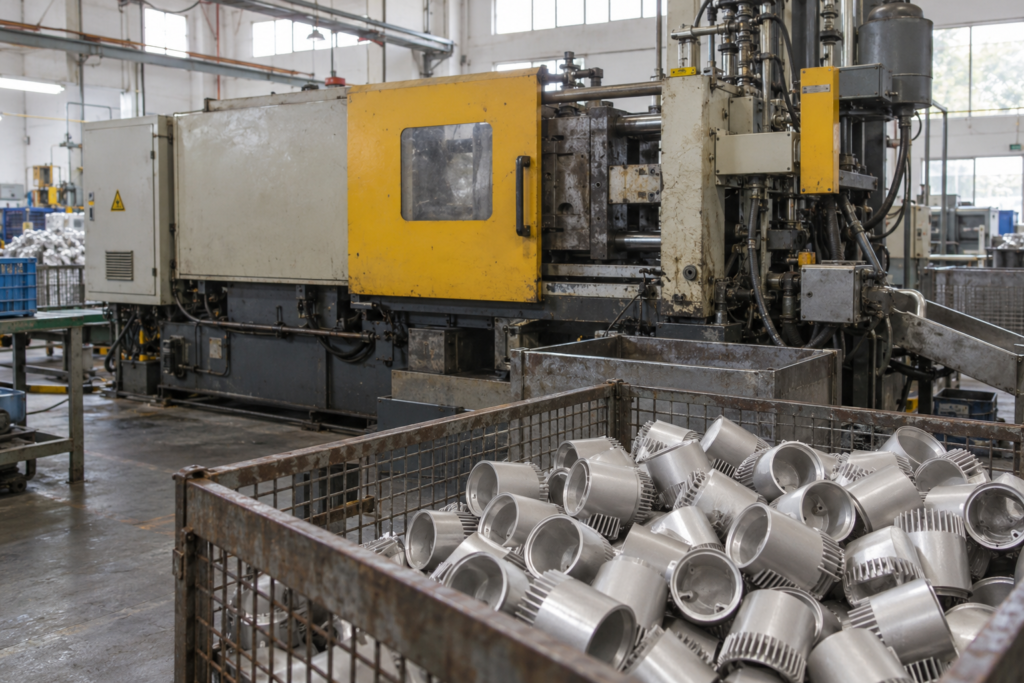

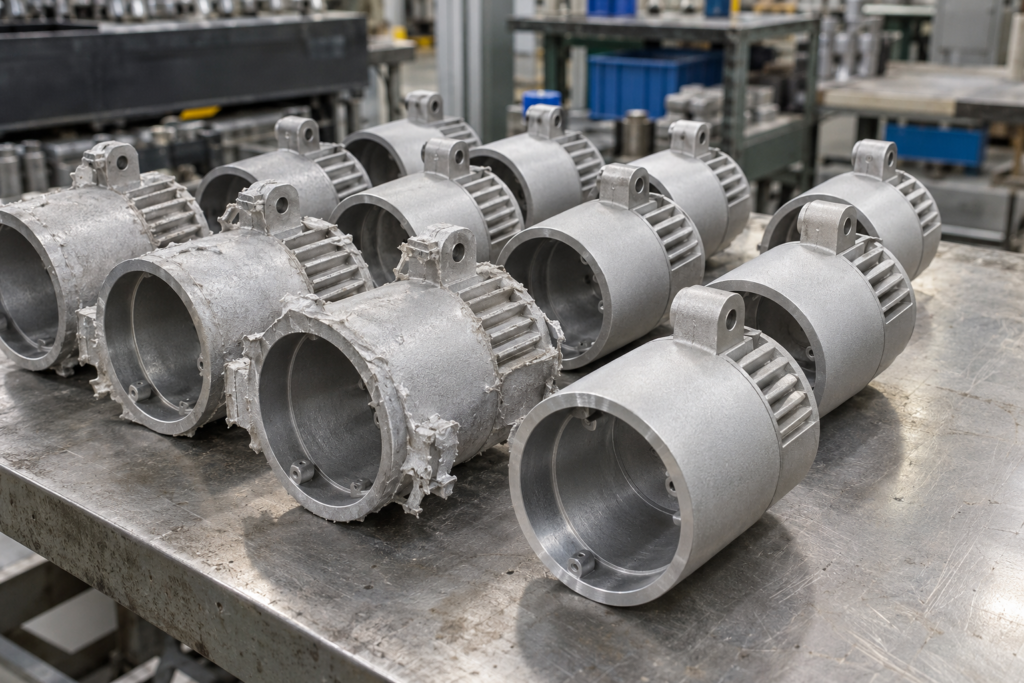

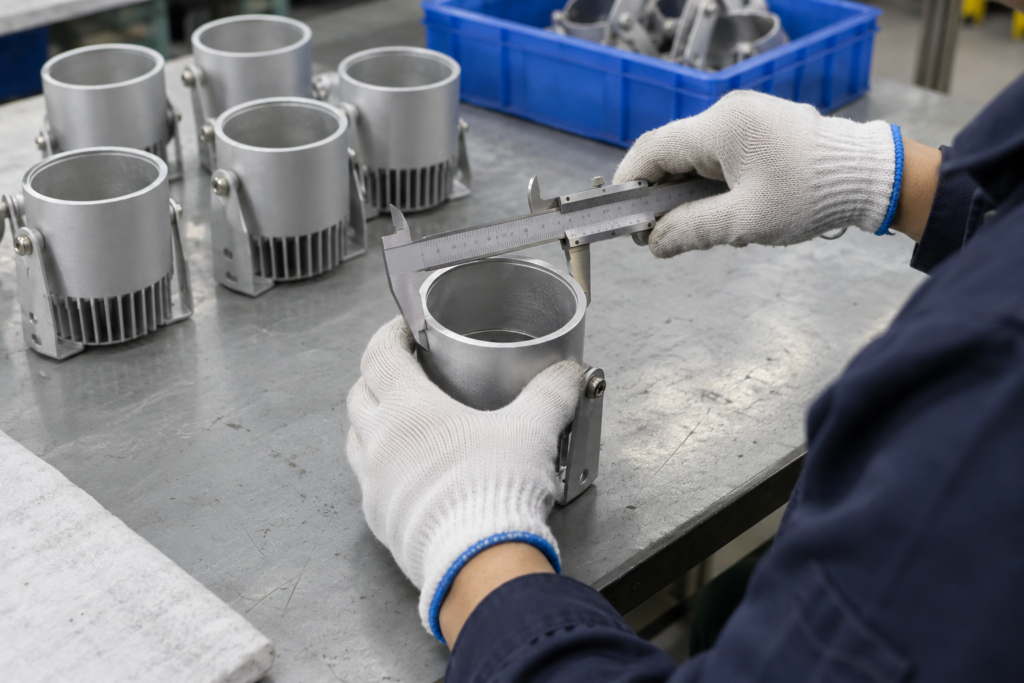

Custom Die-Cast Design

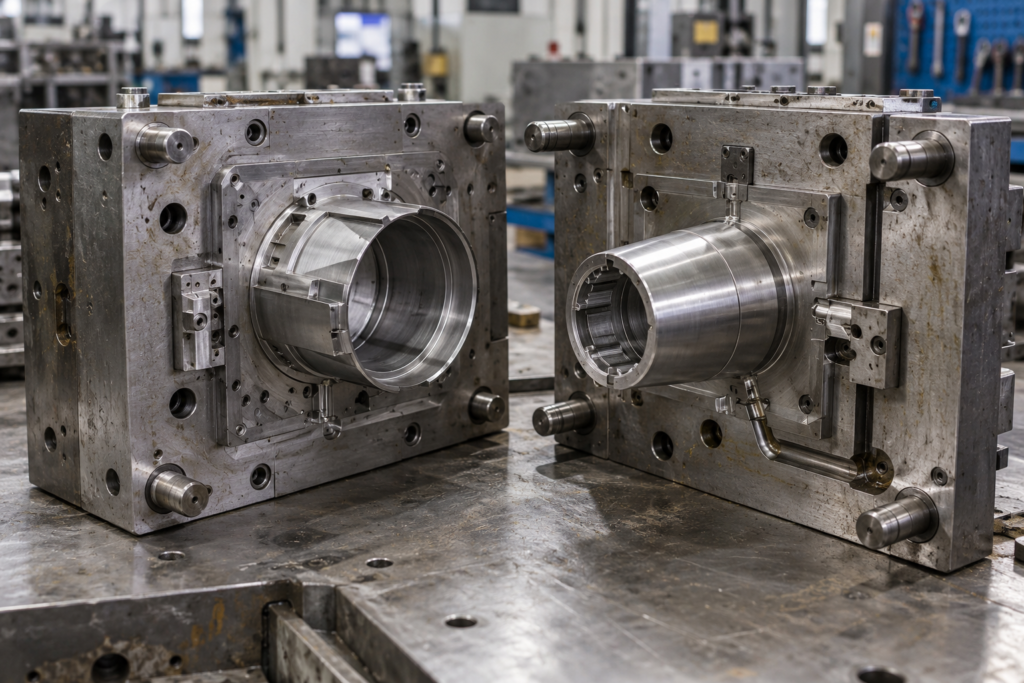

The LED track light housing is made from aluminum alloy, combining low weight, structural strength, and efficient heat dissipation. Molten aluminum is injected into a proprietary steel mold under high pressure, then cooled and released to form the housing. The casting undergoes trimming, deburring, machining, and surface finishing to achieve a clean appearance and accurate component fit.

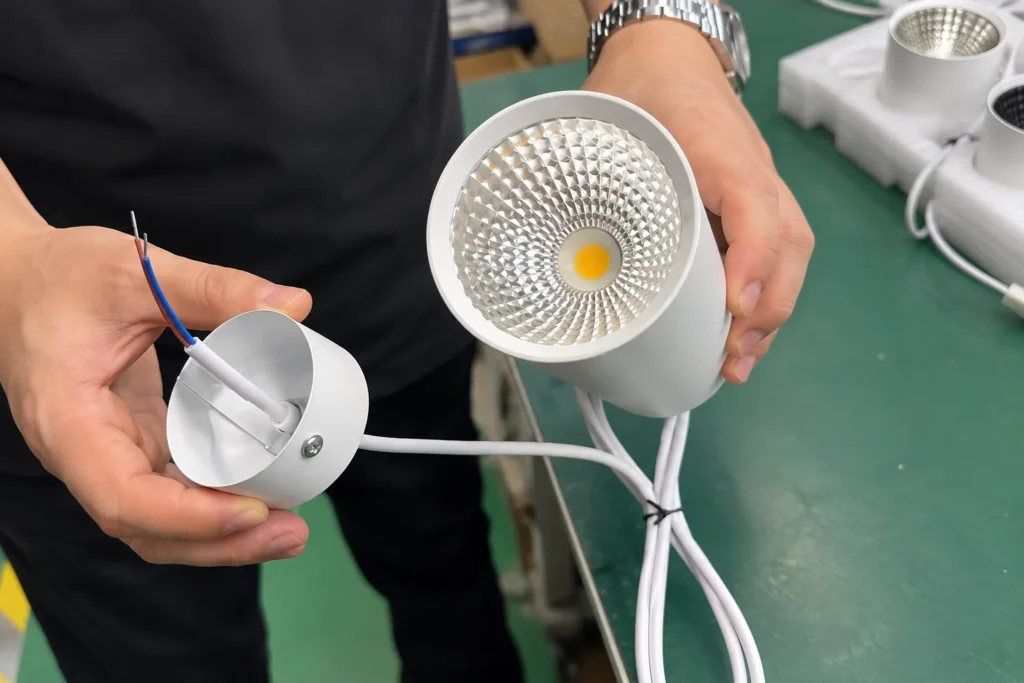

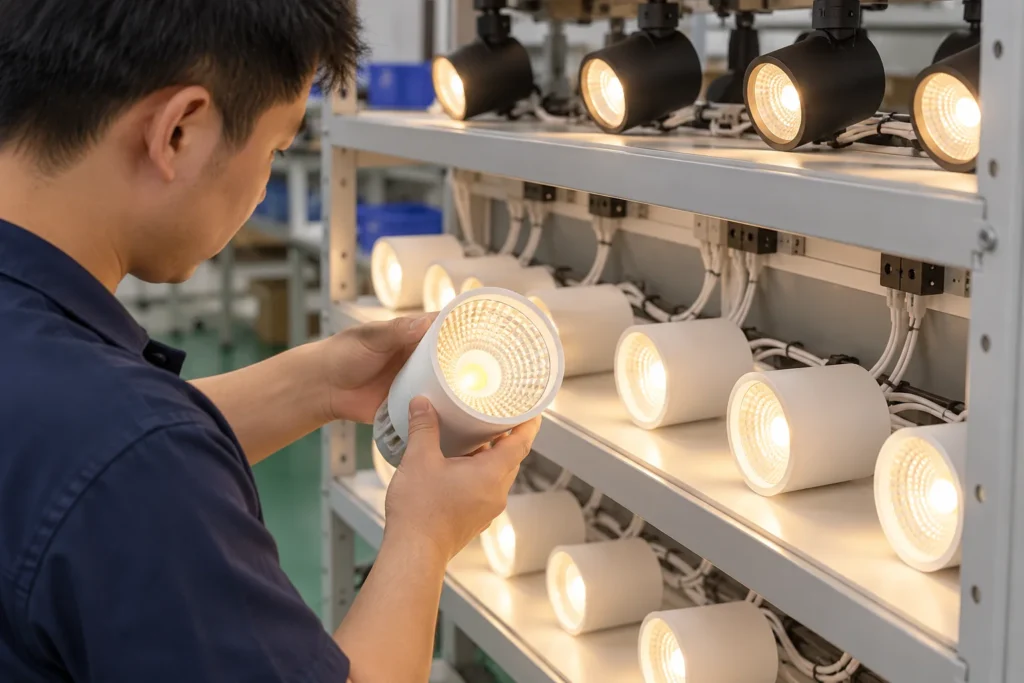

Aging test and Final Inspection

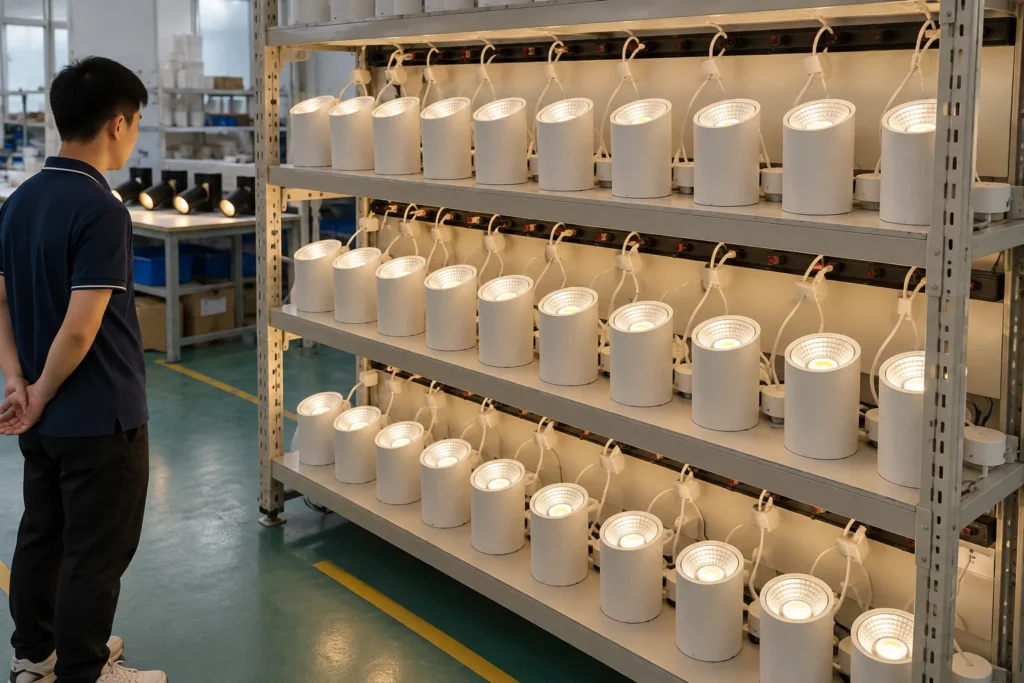

Aging Test
Each LED light undergoes a burn-in test to check operating stability and identify early failures before shipment.

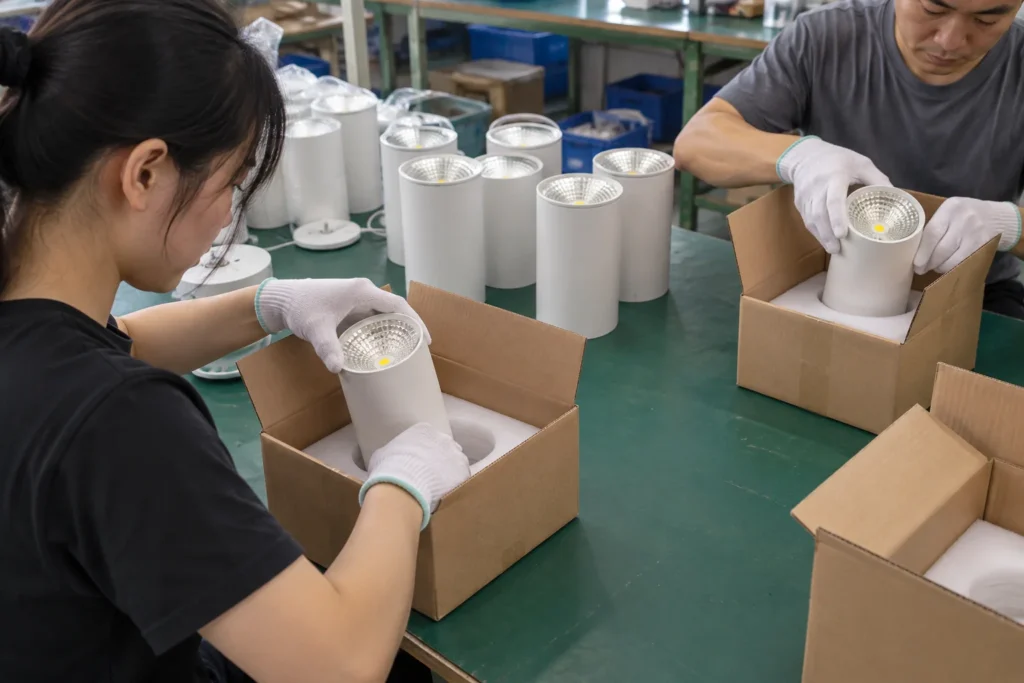

100% Final Inspection
Every finished light is inspected for appearance, assembly, and lighting performance before packing to ensure consistent product quality.
Product details
More about this product
Installation Guide：
Switch off the power before installation. Secure the track to the ceiling and connect the power supply according to the track manufacturer’s instructions. Insert the light’s compatible adapter into the track and lock it in place. Adjust the light direction, then restore power and check operation. Installation should be carried out by a qualified electrician.
Lighting Projects：
FAQ：
- 1. Does the XM series require a track rail?
- No. The XM series mounts directly to the ceiling using a surface-mounted base, so no track rail is required.
- 2. What beam angles and color temperatures are available?
- Available beam angles and color temperatures depend on the selected XM model. Contact us for the latest specifications and help choosing the right combination for your space.
- 3. Does the XM series support dimming?
- Dimming support depends on the driver configuration of the selected model. Please specify your dimming system when requesting a quotation so we can confirm compatibility.
- 4. How do I choose the right wattage for my project?
- Choose the wattage based on mounting height, required brightness, beam angle, and fixture spacing. Share your layout and lighting requirements with us for a suitable recommendation.
- 5. Can I request samples or customized configurations?
- Contact us to discuss sample orders and your preferred configurations, including housing color, color temperature, beam angle, and driver options. We will confirm availability, minimum order quantities, and lead times for your requirements.
